SiteSage WiTemp - wireless temp sensor

Easily monitor, report, and alert on temperatures. The SiteSage WiTemp communicates wirelessly with the SiteSage gateway. This sensor is great for monitoring temperatures in rooms, walk-in coolers, walk-in freezers, heating and cooling equipment, and ventilation systems.

The WiTemp version of the sensor is water-resistant and suitable for monitoring refrigeration and outside temperatures. The WiTemp+ senor, pictured in the blue case, has a terminal for a 1-Wire temperature sensor or pulse device.

The WiTemp sensor includes an onboard temperatures sensor that can be used to measure temperatures ranging from -55°C to +125°C (-67°F to +257°F). To install the Wi-Temp using the onboard sensor, simply open the top of the sensor and insert the batteries (included). The WiTemp can be mounted using a variety of techniques including zip ties through the side slots, screws using the screw holes, Velcro tape or magnetic tape. In all cases it is best to orient the WiTemp+ vertically (and also mount the Gateway vertically).

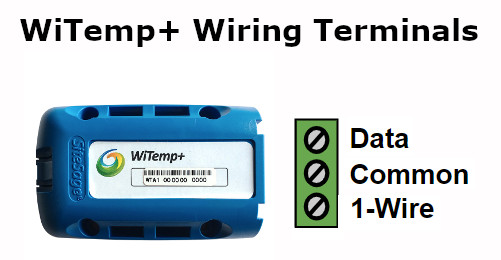

As mentioned earlier, the WiTemp+ version supports the installation of a single 1-Wire temperatures sensor or a single pulse / contact closure sensor. For 1-Wire, this is accomplished by wiring the data wire to the port on the left and the common wire to middle port on the WiTemp+. For the pulse or contact closure sensor, this is accomplished by wiring the data wire to the port on the right and the common wire to middle port on the WiTemp+. Note - the pulse wiring option is not currently working.

The standard sensor dimensions are 3.4" L x 2.4" W x 1" H. Attractive wall-mount enclosures (3.1" x 3.1" x 1.25") are available. See image below:

Request specifications or order this sensor by contacting PowerWise.
